Sato CL6-SXR
from £2,892.00 ex. VAT
from £2,892.00 inc. VAT

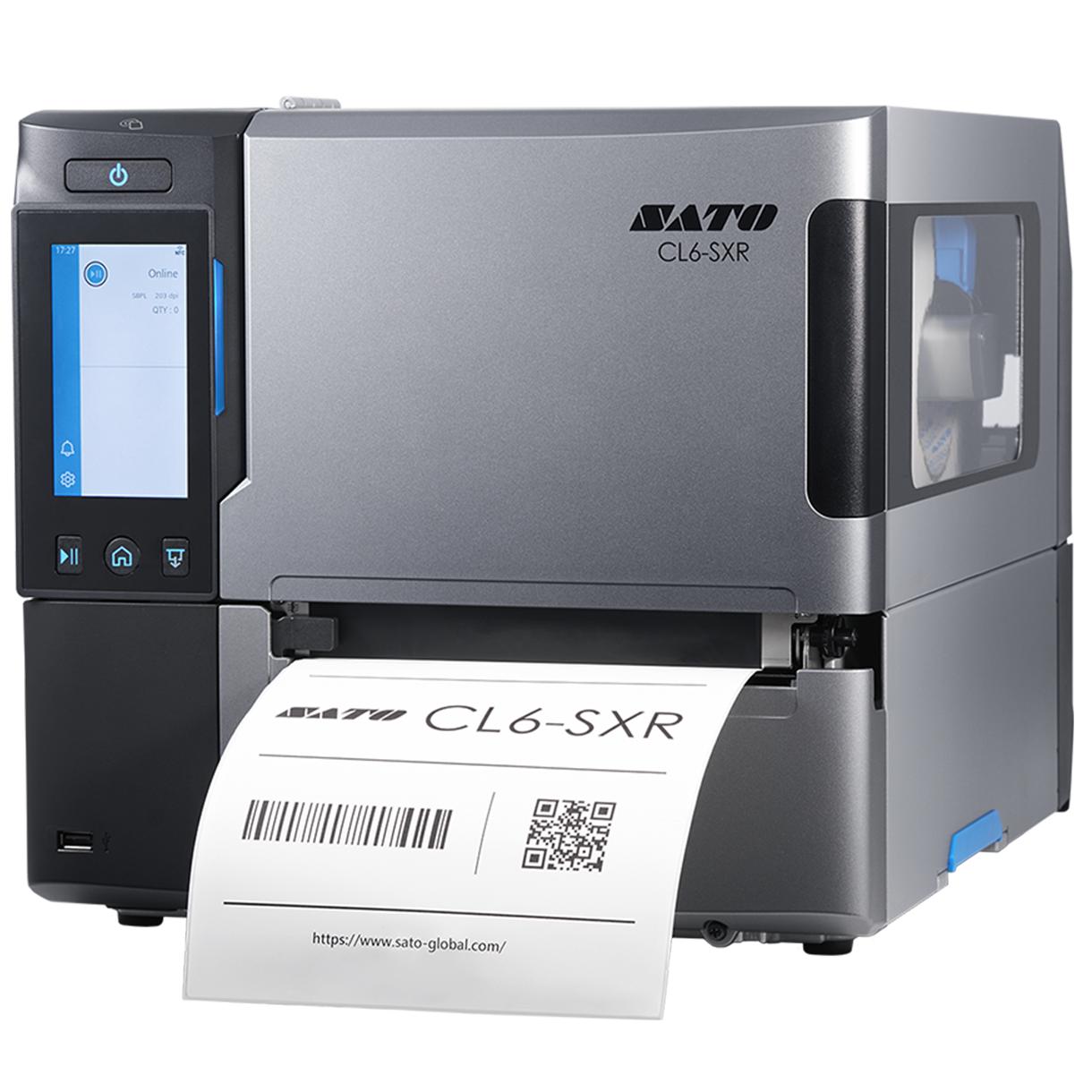

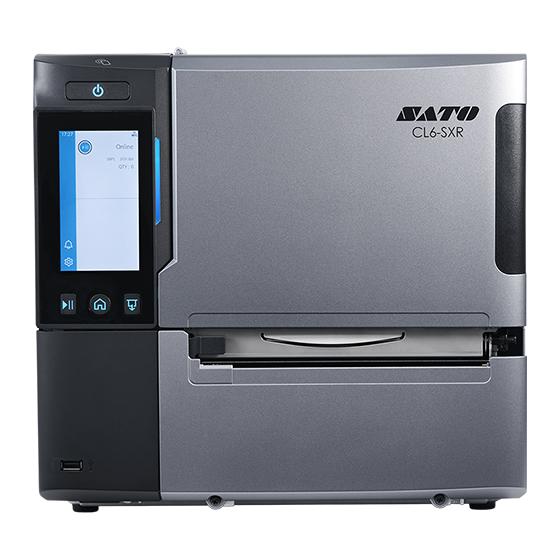

SATO CL6-SXR
Next-generation 6-inch industrial thermal label printer designed for high-volume, wide-format and mission-critical labelling applications.
CL6-SXR at a Glance
More Width. More Possibilities.
The SATO CL6-SXR is a next-generation 6-inch industrial label printer engineered for high-volume, wide-format printing where reliability, precision and consistent performance are essential.
Supporting both direct thermal and thermal transfer printing, the CL6-SXR is particularly suited to larger barcode, shipping, pallet, compliance and identification labels while retaining the intelligent operation and advanced management features of the SATO SXR platform.
Why Choose the CL6-SXR?
Wide-Format Industrial Printing
With a maximum print width of 167.5 mm (6.60"), the CL6-SXR is designed for larger labels including shipping, pallet, compliance and logistics formats.
High-Speed Output
Print at up to 14 inches per second, helping support high-volume labelling requirements in manufacturing, logistics and warehouse environments.
High Precision
SATO's precision engineering provides positioning accuracy of up to ±0.3 mm under specified test conditions.
Intelligent Maintenance
SATO Online Services supports real-time monitoring and predictive maintenance to help identify potential issues before they interrupt production.
Smart Printing Made Simple
The CL6-SXR combines powerful industrial printing capabilities with a straightforward user interface designed to simplify everyday operation.
Clear on-screen controls provide an intuitive way to configure and operate the printer.
A built-in speaker and voice guidance help operators through printer functions and tasks.
Guidance information and videos help users perform common operations and maintenance tasks.
Users can customise screens, icons, messages, shortcuts and widgets to suit their workflow.
Preview functionality allows operators to visually confirm labels before printing.
Precision for Wide-Format Labels
Large-format labels demand accurate positioning. The CL6-SXR has been engineered to maintain precise print positioning across demanding industrial applications.
Advanced Media Handling
The CL6-SXR is designed to handle a wide range of media formats, from standard industrial labels to larger-format shipping, pallet and compliance media.
The redesigned peel-off mechanism provides stable handling of thin, small or irregular labels, including strongly adhesive media.
Supports media widths up to 180 mm with liner, making the printer suitable for wide-format industrial labelling.
Optional cutter and dispenser configurations allow printed output to be tailored to the application.
Configure the CL6-SXR for Your Application
A range of optional accessories is available to extend the CL6-SXR's capabilities. These options are sold separately and can be selected according to your printing, media-handling and connectivity requirements.
UHF RFID
Add UHF RFID capability for printing and encoding RFID labels and tags.
Cutter
Automatically cut printed labels or tags for individual output.
Dispenser
Presents printed labels ready for manual application.
Linerless Kit
Enables compatible linerless media applications.
WLAN & Bluetooth
Add wireless connectivity for flexible printer placement.
Rotary Cutter
Specialist rotary cutting solution for compatible applications.
Rotary Cutter + Liner Rewinder
Rotary cutting combined with liner rewinding for controlled roll output.
Flexible Connectivity & Management
Standard Interfaces
Ethernet 10/100/1000BASE-T with IPv4/IPv6, USB 2.0 Type A & B, NFC, RS232C and EXT interfaces are provided as standard.
Optional Wireless
Optional dual-band WLAN and Bluetooth 5.2 provide additional flexibility where wireless connectivity is required.
Remote Management
SATO Online Services, Advanced Remote Desktop and All-in-one Tool v2 support printer monitoring and management.
Optional RFID Capability
The CL6-SXR can be configured with an optional UHF RFID capability for applications requiring RFID label and tag printing and encoding. RFID can print text and barcodes on UHF labels and tags while encoding data into their embedded chips.
Designed with Waste Reduction in Mind
The CL6-SXR incorporates features designed to help reduce unnecessary media waste while also considering the materials used in the printer itself.
Helps reduce setup label waste by detecting the edge of the first label, allowing printing to begin from the first usable label.
Approximately 34% of the printer's resin components are made using recycled materials.
Linerless media can help reduce backing-paper waste where compatible media and configuration are used.
Ideal Applications
Technical Specifications
| Print Method | Direct Thermal / Thermal Transfer |
| Resolution | 203 dpi / 305 dpi |
| Maximum Print Speed | Up to 14 ips |
| Maximum Print Width | 167.5 mm (6.60") |
| Maximum Print Length | 2,500 mm at 203 dpi / 1,500 mm at 305 dpi |
| Display | 4.3" TFT full-colour touchscreen |
| Memory | 8 GB Flash / 2 GB RAM |
| User Downloadable Memory | 1 GB |
| Real-Time Clock | Included as standard |
| Standard Interfaces | Ethernet 10BASE-T / 100BASE-TX / 1000BASE-T with IPv4/IPv6, USB 2.0 Type A & B, NFC, RS232C, EXT |
| Optional Wireless | WLAN 802.11a/b/g/n/ac/ax dual band (2.4 GHz / 5 GHz / 6 GHz) and Bluetooth 5.2 |
| Printer Emulations |
SZPL / SDPL / SIPL / SMPL / SPGL / STCL* / SEPL* /
XML / PDF Direct Print / SATO AEP
*STCL and SEPL availability is scheduled for 2027 according to current SATO specifications. |
| Remote Management | SATO Online Services / Advanced Remote Desktop / All-in-one Tool v2 |
| RFID | Optional UHF RFID capability |
Frequently Asked Questions
Is the CL6-SXR direct thermal or thermal transfer?
The CL6-SXR supports both direct thermal and thermal transfer printing, allowing it to be configured for a wide range of industrial labelling applications.
Does the CL6-SXR have a Real-Time Clock?
Yes. A Real-Time Clock is included as standard, making the CL6-SXR suitable for applications requiring accurate date and time information on printed labels.
Is RFID included?
RFID is an optional extra. UHF RFID capability can be added where RFID printing and encoding is required.
Is WLAN and Bluetooth included as standard?
No. WLAN and Bluetooth are available as an optional wireless connectivity upgrade.
Can the CL6-SXR be used for large shipping and pallet labels?
Yes. Its maximum print width of 167.5 mm (6.60") makes it particularly suitable for wide-format shipping, pallet, logistics and compliance labels.
Can the CL6-SXR print linerless labels?
Linerless media can be used where the appropriate compatible configuration and media are selected. The relevant linerless equipment is available separately.
Are cutters and dispensers included?
No. Cutter, dispenser and other finishing options are sold separately and can be selected according to your application requirements.
Ready for Wide-Format Industrial Labelling?
The SATO CL6-SXR combines wide-format printing, industrial reliability, high-speed output, precision media handling, intelligent operation and extensive configuration options in one powerful 6-inch label printer.
